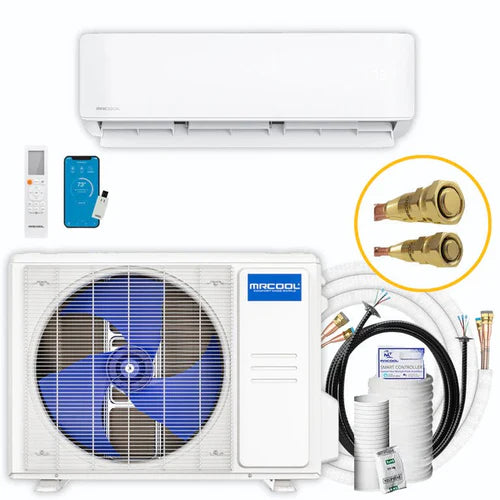

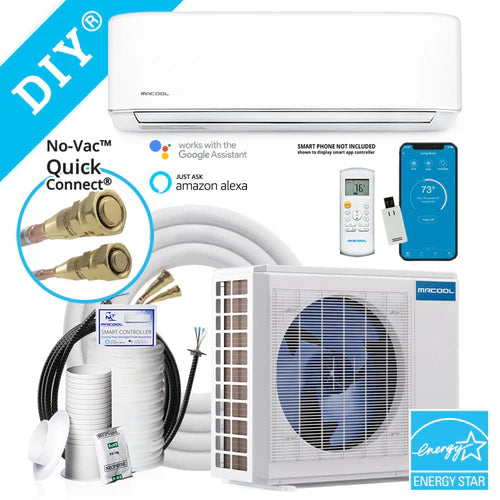

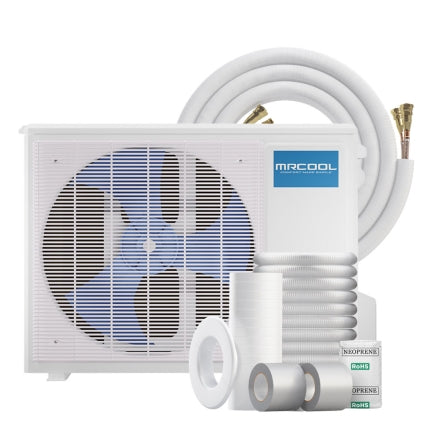

The MRCOOL 4th Generation DIY 36K BTU, 18.30 SEER2 Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series.This powerful single-zone system has the capability of heating and cooling an area up to 1,500 sq. ft. It comes complete with a 36K condenser, 36K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.
This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18.3 SEER2 efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MRCOOL Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation.
This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MRCOOL offers a limited lifetime compressor warranty on this system.

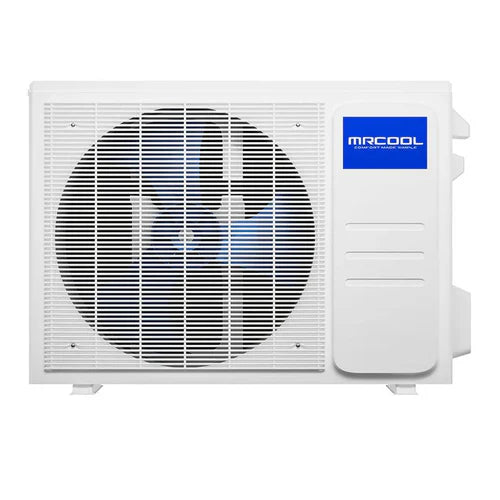

| Condenser Dimensions | 35.04"W x 13.46"D x 26.50"H |
|---|---|
| Condenser Weight | 94.36 lbs |
| Air Handler Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Air Handler Weight | 34.61 lbs |
| SEER2 | 22.70 |
| EER2 | 12.60 |
| SEER | 22 |
| EER | 12.5 |
| COP 47 | 3.74 |
| HSPF2 | 9.80 |
| HSPF | hspf4/hspf5 : 11.5/9 |
| CFM | 465.29/361.76/304.12 |
| Tonnage | 1.5 |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 30 A |
| Min Circuit Ampacity | 18 A |
| Color | White |
| Rate Load | 0.25 A |
| Max Coverage Area | Up to 750 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 56.44 oz |
| Decibel Rating | 44.5/37/31 |
| Decibel Rating Low | 31 dBA |
| Decibel Rating High | 44.5 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 1/2 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 810/720 |
| Blower Motor RPM | 1120/950/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed Energy Star AHRI |
| Warranty | 5-year Parts/7-year Compressor |
| Restricted States | GU;PR;VI |
