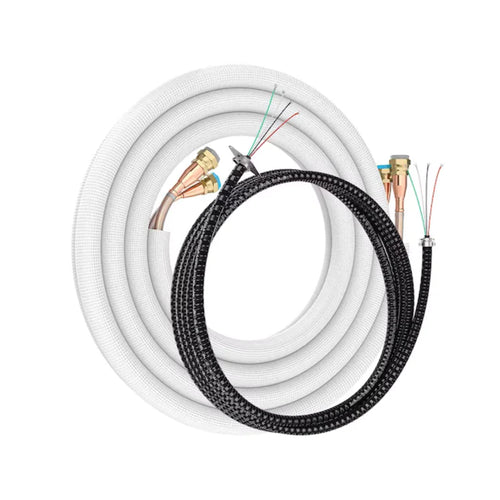

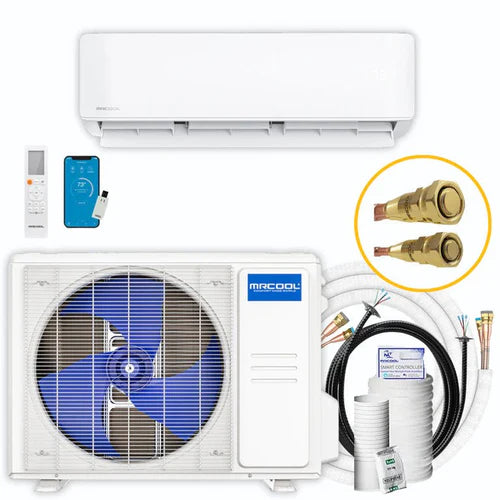

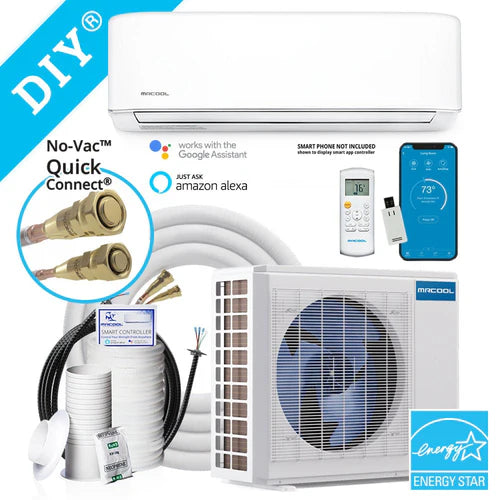

The MRCOOL 4th Generation DIY 24K BTU, 20.5 SEER2 Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This powerful single-zone system has the capability of heating and cooling an area up to 1,000 sq. ft. It comes complete with a 24K condenser, 24K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.
This system can offer a 20.5 SEER2 efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MRCOOL Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.
The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
|---|---|
| Condenser Weight | 125.22 lbs |
| Air Handler Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Air Handler Weight | 35.27 |
| SEER2 | 20.50 |
| EER2 | 12.50 |
| SEER | 20.5 |
| EER | 12.5 |
| COP 47 | 3.15 |
| HSPF | hspf4/hspf5 : 10.5/9 |
| HSPF2 | 9.20 |
| CFM | 605.88/505.88/364.71 |
| Tonnage | 2 |
| Cooling Capacity | 23,000BTU |
| Heating Capacity | 25,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 22 A |
| Color | White |
| Rate Load | 0.45 A |
| Max Coverage Area | Up to 1000 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 81.13 oz |
| Decibel Rating | 48.5/43.5/33 |
| Decibel Rating Low | 33 dBA |
| Decibel Rating High | 48.5 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 850/750/700 |
| Blower Motor RPM | 1200/1000/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only Quiet Mode Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Includes | Remote Batteries |
| Certifications | UL Listed Energy Star AHRI |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
| Restricted States | GU;PR;VI |
